Roughness

glTF: pbrMetallicRoughness.roughnessFactor · pbrMetallicRoughness.metallicRoughnessTexture (green channel)

Roughness describes how microscopically rough a surface is. In glTF it is stored in the green channel of the shared metallicRoughnessTexture. It is a non-color (linear) workflow.

Shader	Scalar attribute	Texture attribute	Notes
`standardSurface`, `aiStandardSurface`	`specularRoughness`	`specularRoughness`	Falls back to `diffuseRoughness` only if no MR texture was created
`openPBRSurface`	`specularRoughness`	`specularRoughness`	Falls back to `baseDiffuseRoughness` if unavailable
`StingrayPBS`	`roughness`	`TEX_roughness_map` + `use_roughness_map`	Repacked into the green channel on export

Factor only

Set the roughness attribute directly on the shader.

standardSurface, aiStandardSurface, openPBRSurface: set specularRoughness.
StingrayPBS: set roughness.

Exports as roughnessFactor.

standardSurfaceaiStandardSurfaceopenPBRSurfaceStingrayPBS

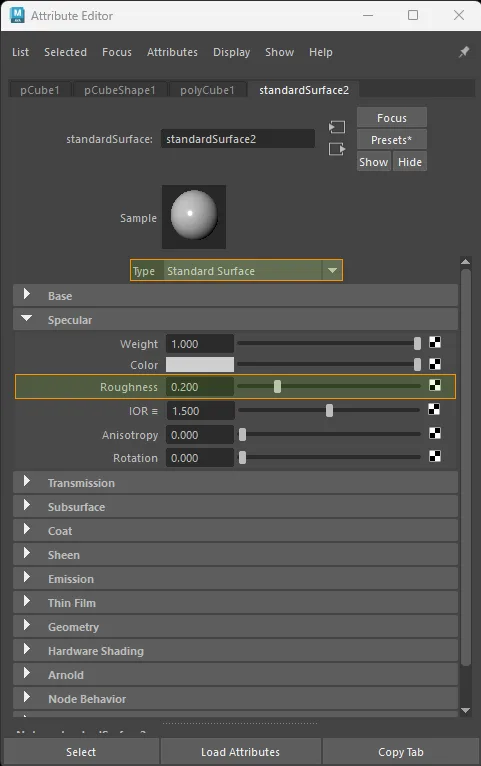

Factor-only roughness connection for standardSurface — `standardSurface` factor-only roughness setup.

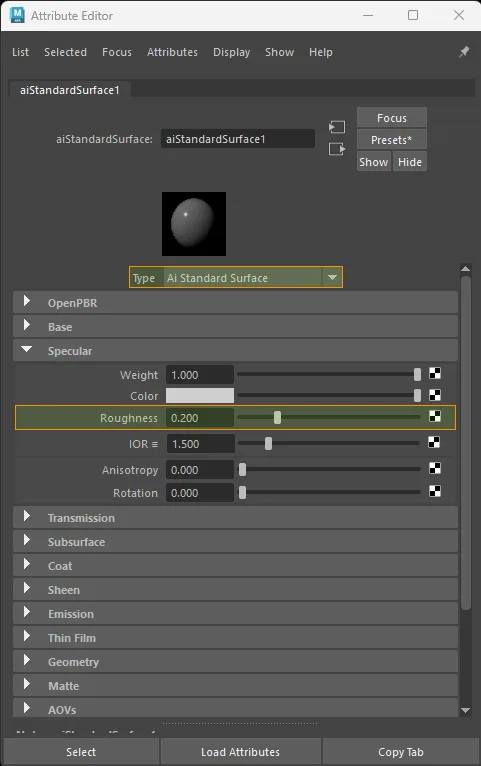

Factor-only roughness connection for aiStandardSurface — `aiStandardSurface` factor-only roughness setup.

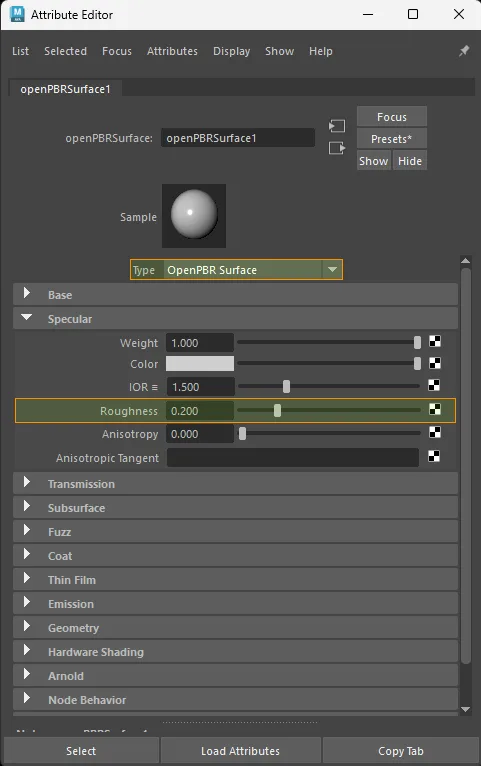

Factor-only roughness connection for openPBRSurface — `openPBRSurface` factor-only roughness setup.

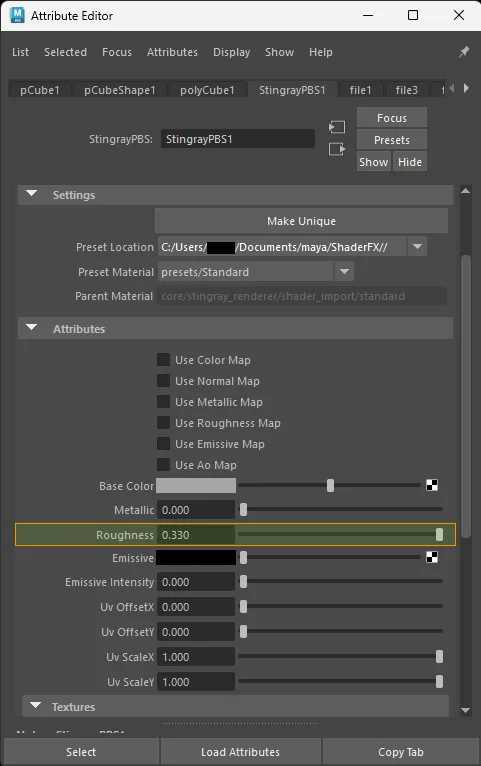

Factor-only roughness connection for StingrayPBS — `StingrayPBS` factor-only roughness setup.

Texture only

Color space: Raw

standardSurface · aiStandardSurface · openPBRSurface:
  aiImage.outColorG  →  shader.specularRoughness
  file.outColorG     →  shader.specularRoughness

StingrayPBS:
  grayscale file.outColor   →  shader.TEX_roughness_map  (enable use_roughness_map)
  grayscale file.outColorR  →  shader.TEX_roughness_map
  grayscale file.outColorG  →  shader.TEX_roughness_map
  grayscale file.outColorB  →  shader.TEX_roughness_map

Roughness is packed into the green channel of metallicRoughnessTexture on export. Use a grayscale source image for the most reliable result.

For a dedicated grayscale roughness image, outColor, outColorR, outColorG, or outColorB all export equivalently because the image carries the same value in every RGB channel. The examples below use outColorG to mirror glTF's roughness channel. If roughness is the only metallic/roughness channel in use, the exporter keeps the original grayscale image as the metallicRoughnessTexture instead of generating a new packed map.

standardSurfaceaiStandardSurfaceopenPBRSurfaceStingrayPBS

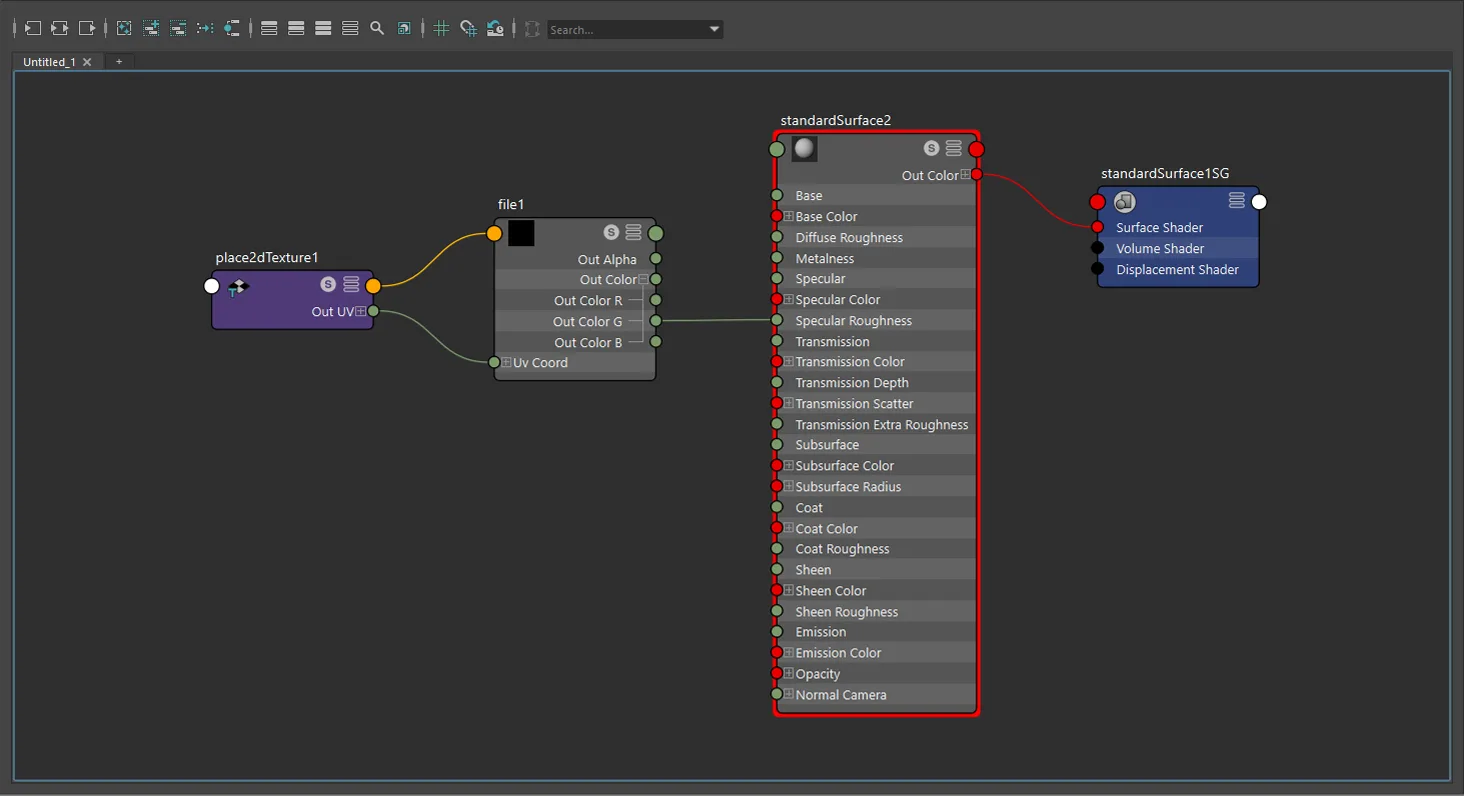

Texture-only roughness connection for standardSurface using file and place2dTexture — `standardSurface` texture-only roughness setup with `file` and `place2dTexture`.

Texture-only roughness connection for aiStandardSurface using file and place2dTexture — `aiStandardSurface` texture-only roughness setup with `file` and `place2dTexture`.

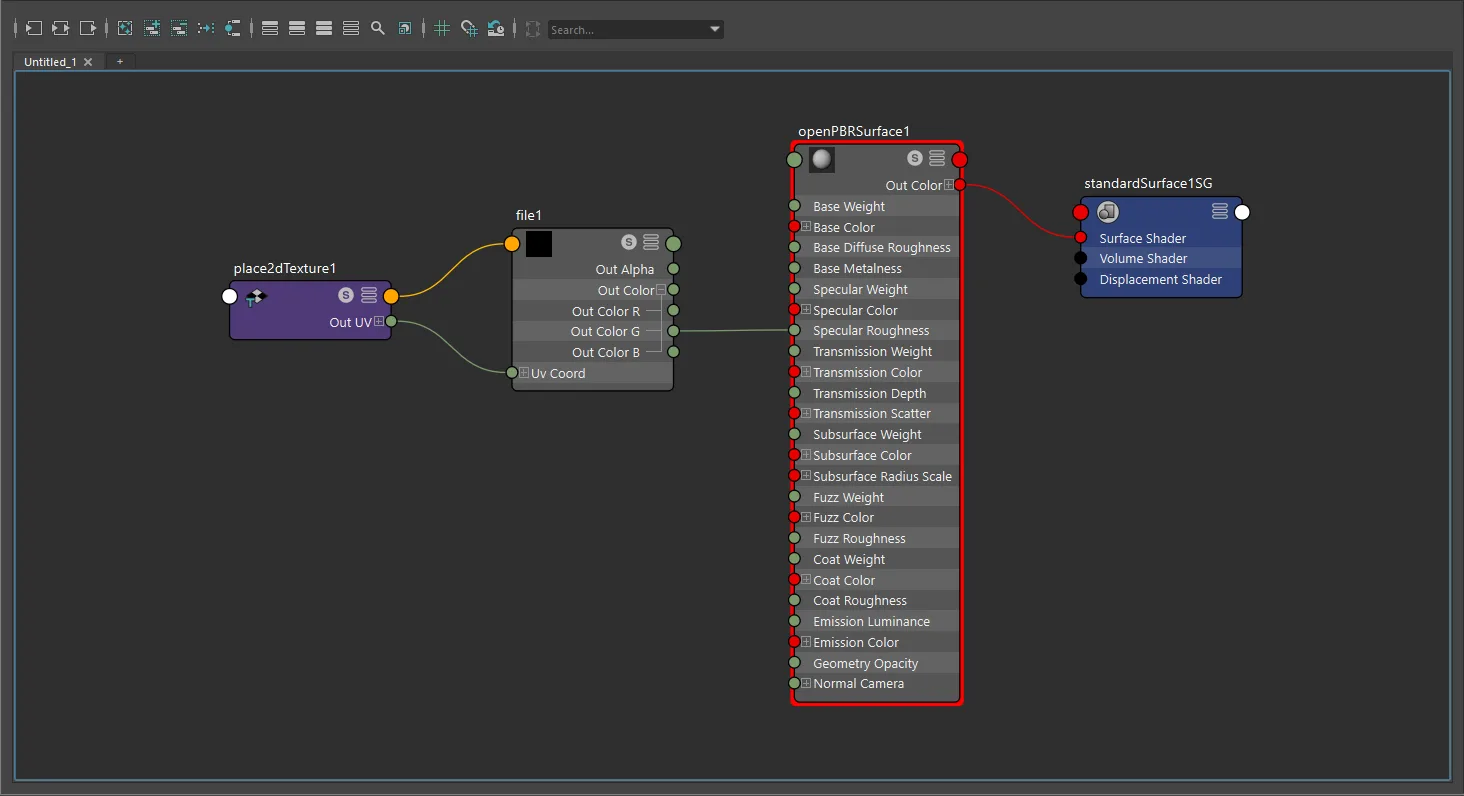

Texture-only roughness connection for openPBRSurface using file and place2dTexture — `openPBRSurface` texture-only roughness setup with `file` and `place2dTexture`.

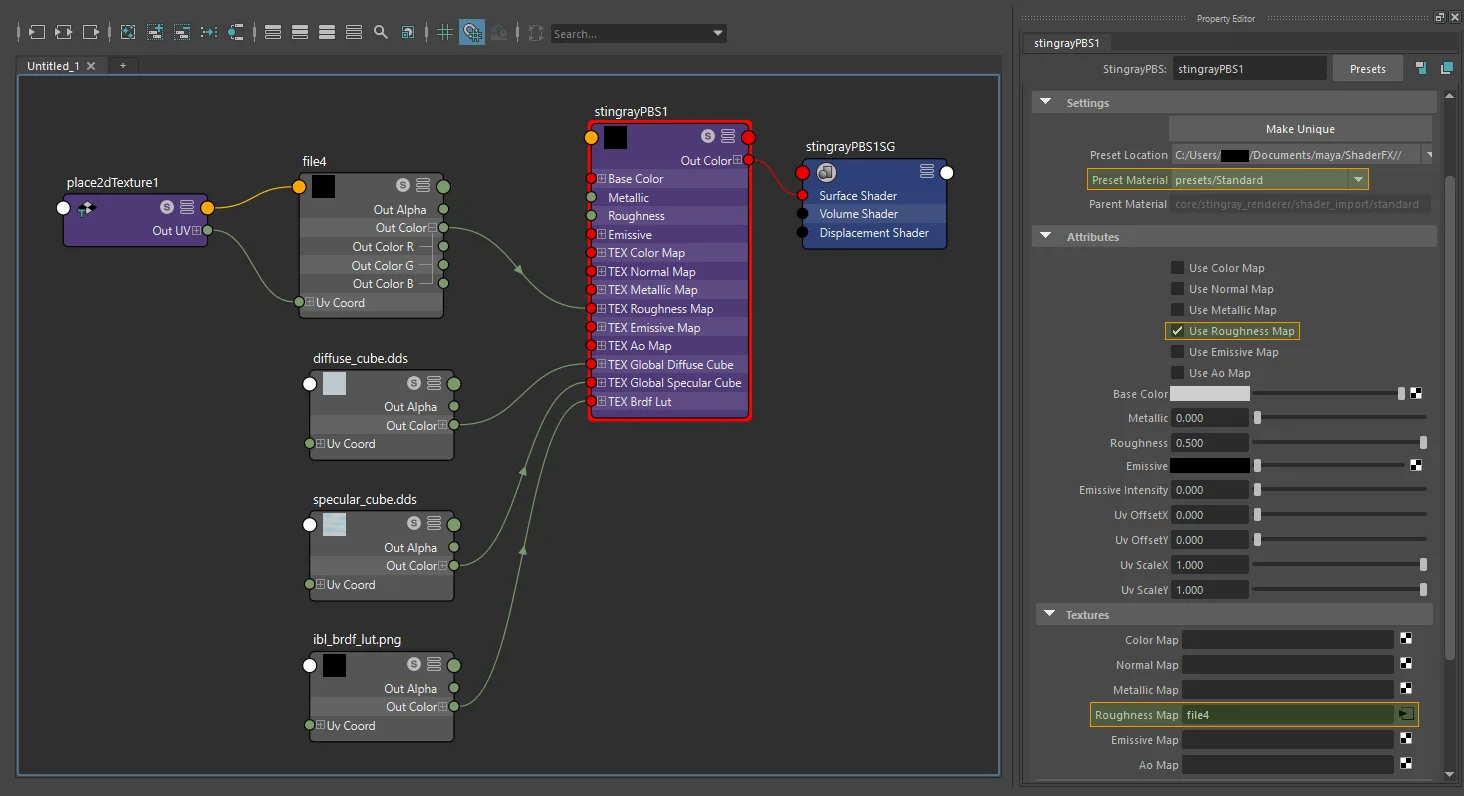

Texture-only roughness connection for StingrayPBS using file and place2dTexture — `StingrayPBS` texture-only roughness setup with `file` and `place2dTexture`.

Note

For standardSurface, aiStandardSurface, and openPBRSurface, aiImage connects the same way as the file examples above: connect the matching aiImage.outColorG output to the same roughness input, and use a place2dTexture if you need UV repeat, wrap, mirror, offset, or rotation controls.

StingrayPBS does not support an aiImage roughness path.

Factor + texture

glTF computes: roughnessFactor × roughnessTexture

For standardSurface, aiStandardSurface, and openPBRSurface, a dedicated grayscale roughness map can use any one multiplyDivide lane. The examples below use the Y lane because it mirrors glTF roughness:

Connect the grayscale roughness texture into one lane of multiplyDivide.input1X, input1Y, or input1Z.
Set the matching roughness multiplier on multiplyDivide.input2X, input2Y, or input2Z.
Connect the matching multiplyDivide.outputX, outputY, or outputZ → shader.specularRoughness.

For dedicated grayscale roughness maps, the exporter traces the actual source plug, so outColor, outColorR, outColorG, or outColorB can feed that lane. The lane choice does not need to be Y.

For StingrayPBS, continue to use the dedicated roughness map input.

standardSurface · aiStandardSurface · openPBRSurface:
  texture.outColorG  →  multiplyDivide.input1Y  →  shader.specularRoughness

If the source image is not grayscale, use the connection that carries the real roughness data. For a packed ORM image that means outColorG.

The multiplier exports as roughnessFactor.

standardSurfaceaiStandardSurfaceopenPBRSurface

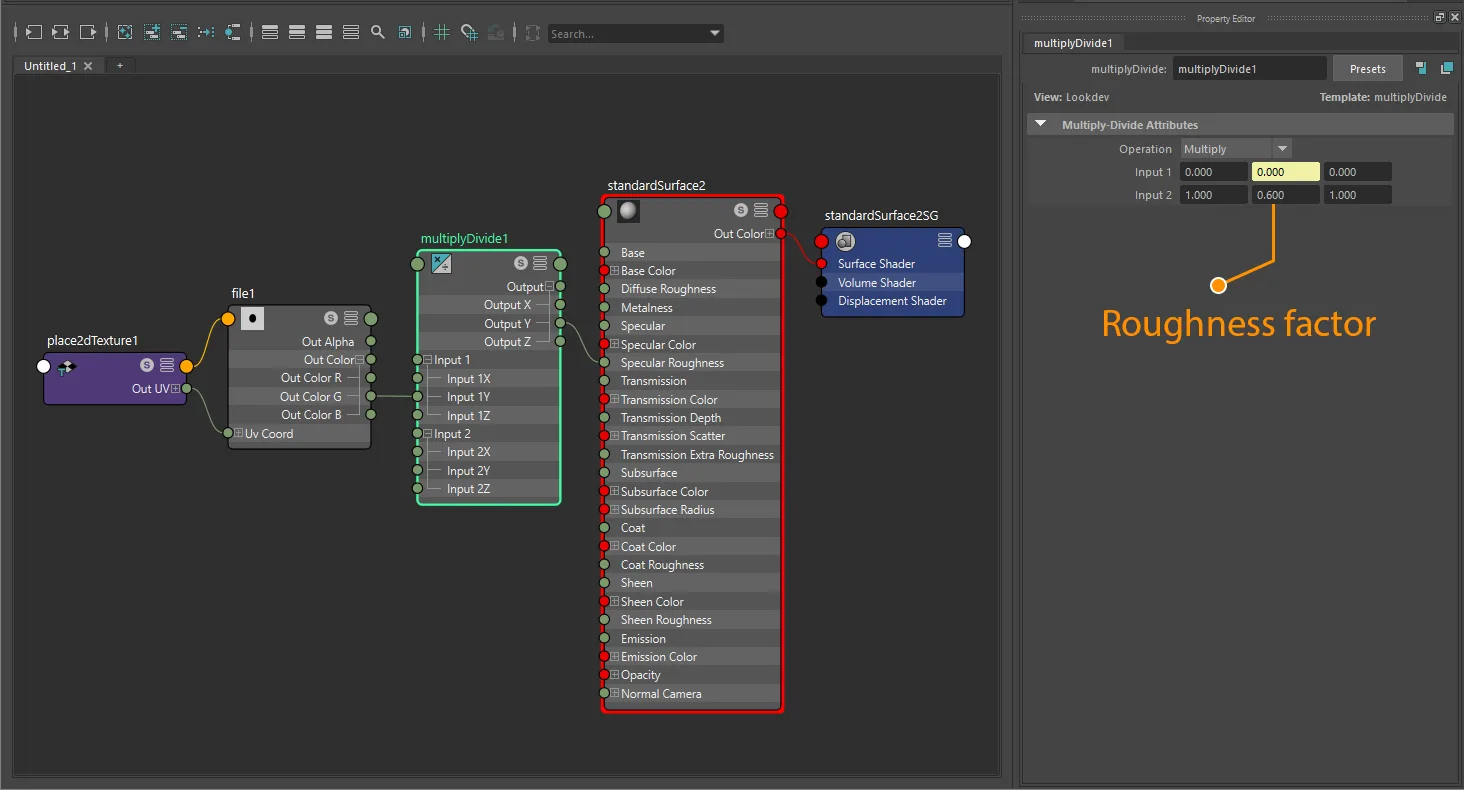

Roughness factor plus texture connection for standardSurface using file and place2dTexture — `standardSurface` factor-plus-texture roughness setup with `file` and `place2dTexture`.

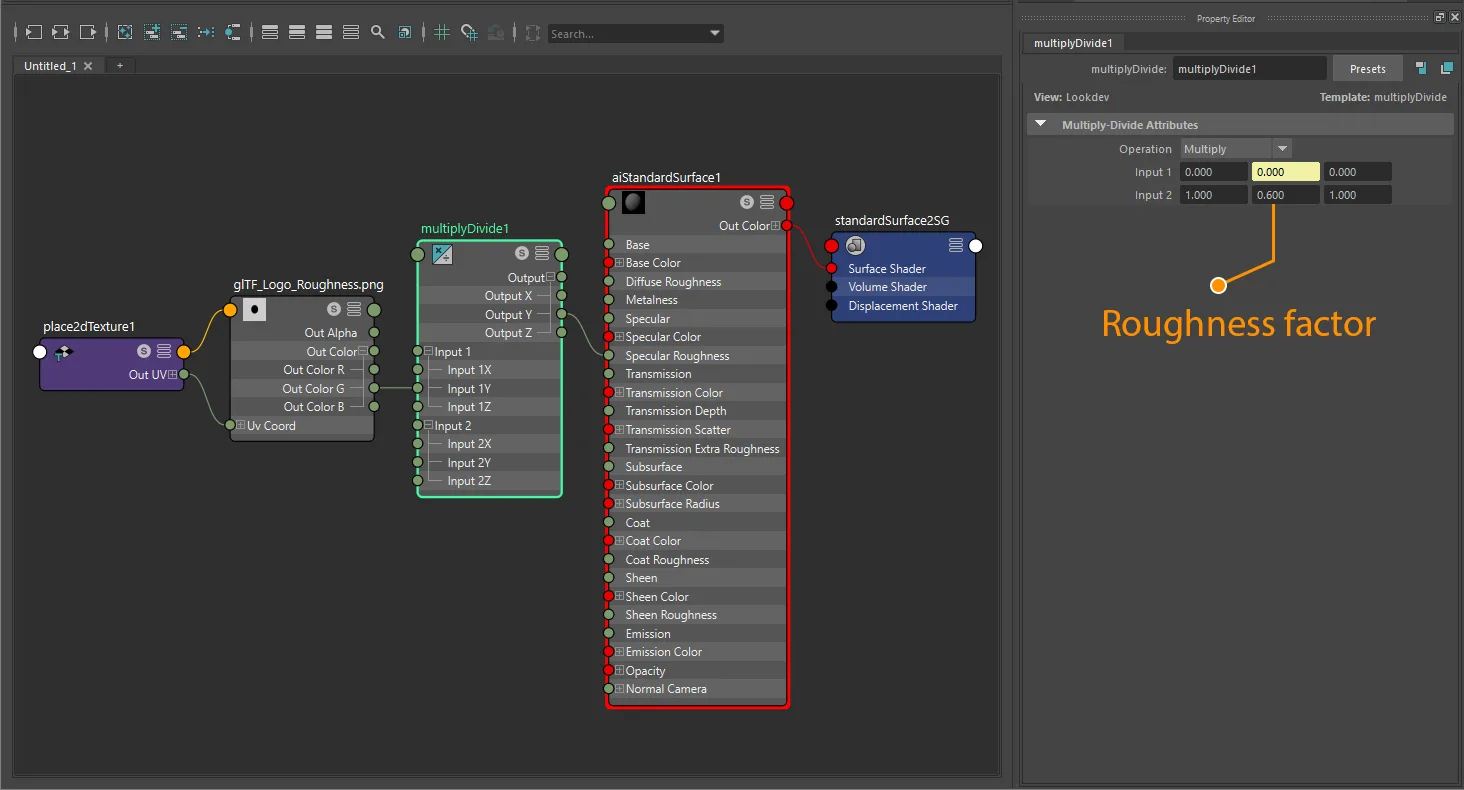

Roughness factor plus texture connection for aiStandardSurface using file and place2dTexture — `aiStandardSurface` factor-plus-texture roughness setup with `file` and `place2dTexture`.

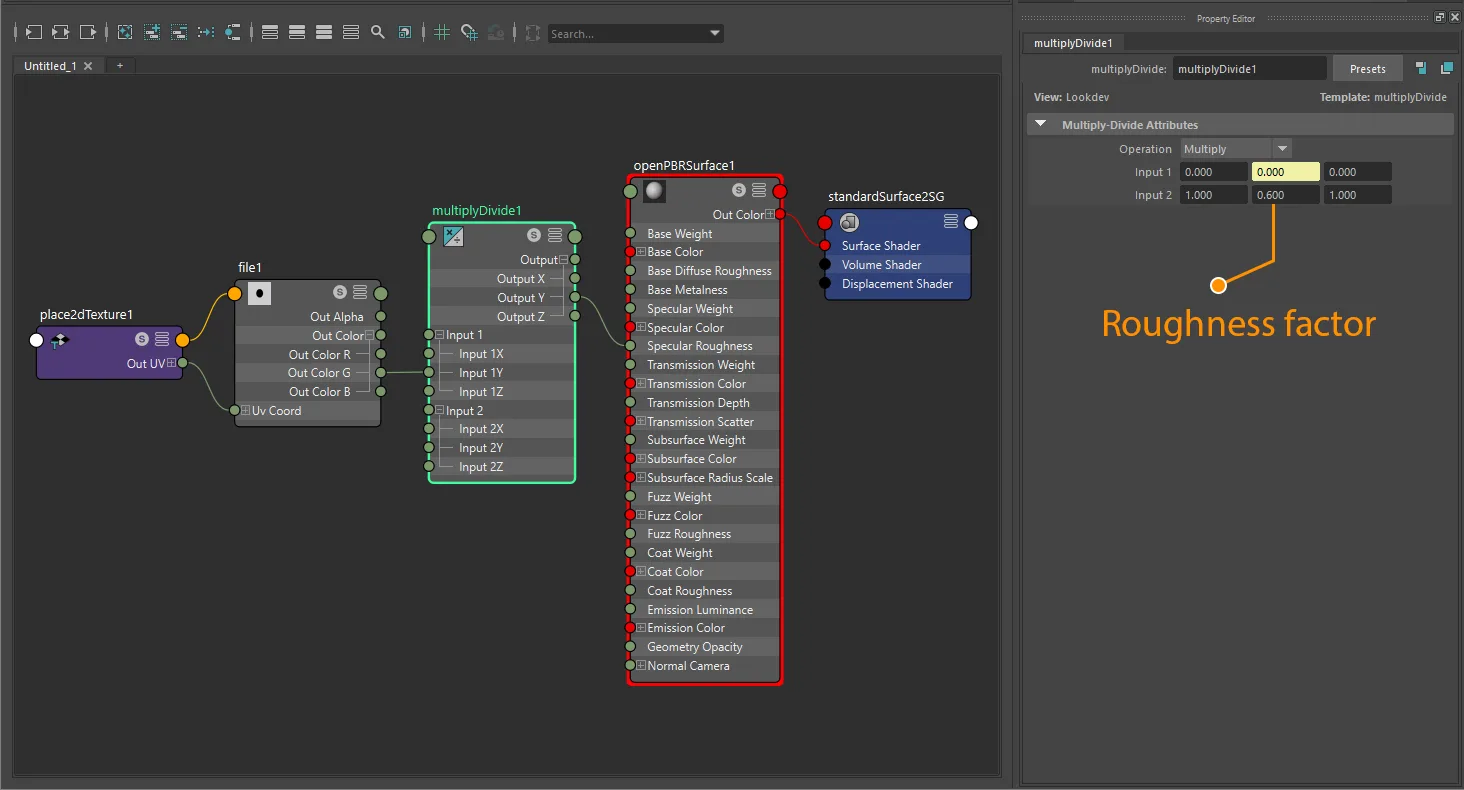

Roughness factor plus texture connection for openPBRSurface using file and place2dTexture — `openPBRSurface` factor-plus-texture roughness setup with `file` and `place2dTexture`.

Note

aiImage uses the same factor-plus-texture graph as the file examples above: connect the same aiImage.outColorG output to the matching multiplyDivide.input1* lane, then continue from the corresponding multiplyDivide.output* to the same shader input.

Packed ORM / MR map

The preferred glTF layout when roughness, metallic, and AO share one texture:

Channel	Data
R	Occlusion
G	Roughness
B	Metallic

texture.outColorR  →  shader.gltfAO
texture.outColorG  →  shader.specularRoughness
texture.outColorB  →  shader.metalness        (standardSurface · aiStandardSurface)
texture.outColorB  →  shader.baseMetalness    (openPBRSurface)

For standardSurface, aiStandardSurface, and openPBRSurface, automatic packed-ORM reuse requires metallic and roughness to resolve to the same file path, with roughness read from G and metallic from B. One shared texture node or multiple texture nodes that point to the same file are both supported.

The multiply network is flexible: one shared multiplyDivide node or separate multiplyDivide nodes are both supported, and the packed ORM channels may pass through any X, Y, or Z lane. What matters is the source texture channel: roughness must come from G and metallic must come from B.

AO is exported from that same packed image only when the image's R channel is explicitly connected to gltfAO. Without the gltfAO connection, the exporter writes only metallicRoughnessTexture.

Separate grayscale maps are also supported. This includes graphs that use one shared multiplyDivide node for AO, roughness, and metallic, or separate multiplyDivide nodes per channel. When any 2 or 3 of AO, roughness, and metallic are texture-driven from different grayscale sources, the exporter generates a packed OR, MR, OM, or ORM texture as needed. If only roughness is present, it exports the original grayscale image directly as the metallicRoughnessTexture. All generated packed maps must share the same dimensions.

If metallic and roughness already share one packed source image but AO comes from a different file, the exporter keeps AO as a separate occlusionTexture instead of merging it into that MR image.

Texture only example

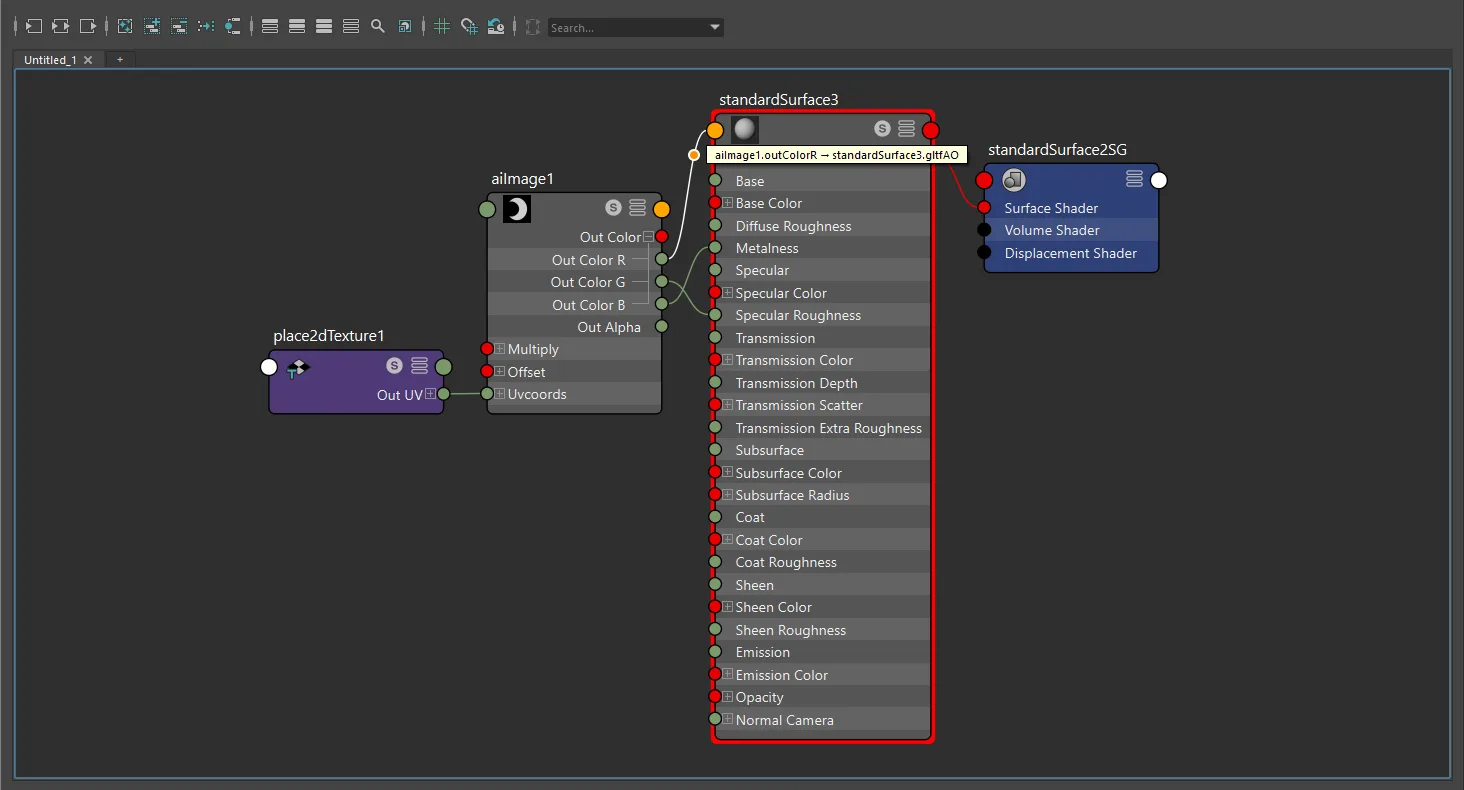

Packed ORM roughness texture-only connection for aiStandardSurface — `aiStandardSurface` packed ORM texture-only setup.

Texture + factor example

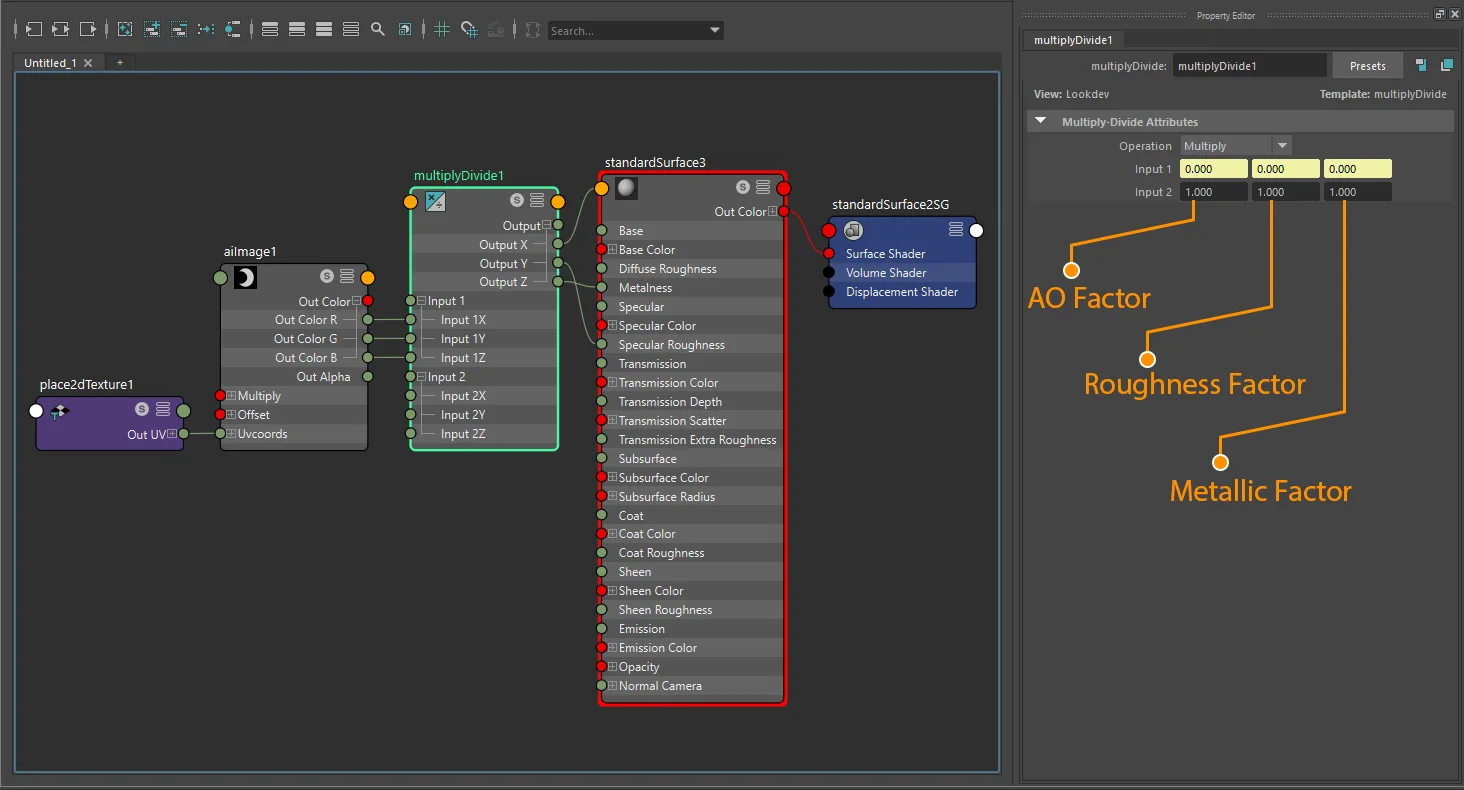

Packed ORM roughness texture-plus-factor connection for aiStandardSurface — `aiStandardSurface` packed ORM factor-plus-texture roughness setup.

For StingrayPBS, the exporter also recognizes packed ORM-style authoring when roughness and metallic share the same source image, even if the Maya graph uses file.outColor on one shared file node or on multiple file nodes that point to the same image path. In that case the exporter infers the glTF channel roles from the destination attributes and writes roughness to the green channel.

UV transform

Use a connected place2dTexture with either file or aiImage to set repeat, wrap, mirror, offset, and rotation.

UV set: assign via Maya's UV Set Editor or UV Linking - see UV Set Selection for node-type differences.

For standardSurface, aiStandardSurface, and openPBRSurface, keep metallic, roughness, and AO inputs on matching UV sets and matching transforms when you expect them to share one exported texture. When the exporter reuses or generates a packed MR/ORM texture, it takes the UV transform and texCoord from the first resolved metallic, roughness, or AO texture node.

If StingrayPBS roughness and metallic use different UV sets or different place2dTexture transforms, the exporter warns and still packs them into one glTF metallic-roughness texture using the first metallic/roughness input it finds as the reference UV transform.

Notes

Roughness is a non-color map. Always use Raw color space.
Use grayscale roughness maps for standalone inputs. If the data lives only in one channel of a packed image, follow the packed ORM workflow above.
If packing into a single image, roughness must be in the green channel per the glTF spec.
StingrayPBS: use TEX_roughness_map and set UV transforms on the connected place2dTexture.
StingrayPBS: standalone grayscale roughness accepts outColor, outColorR, outColorG, or outColorB. Packed ORM detection prefers shared-image workflows and maps roughness to glTF G on export.
